XYZ CARGO TRUCK— Details

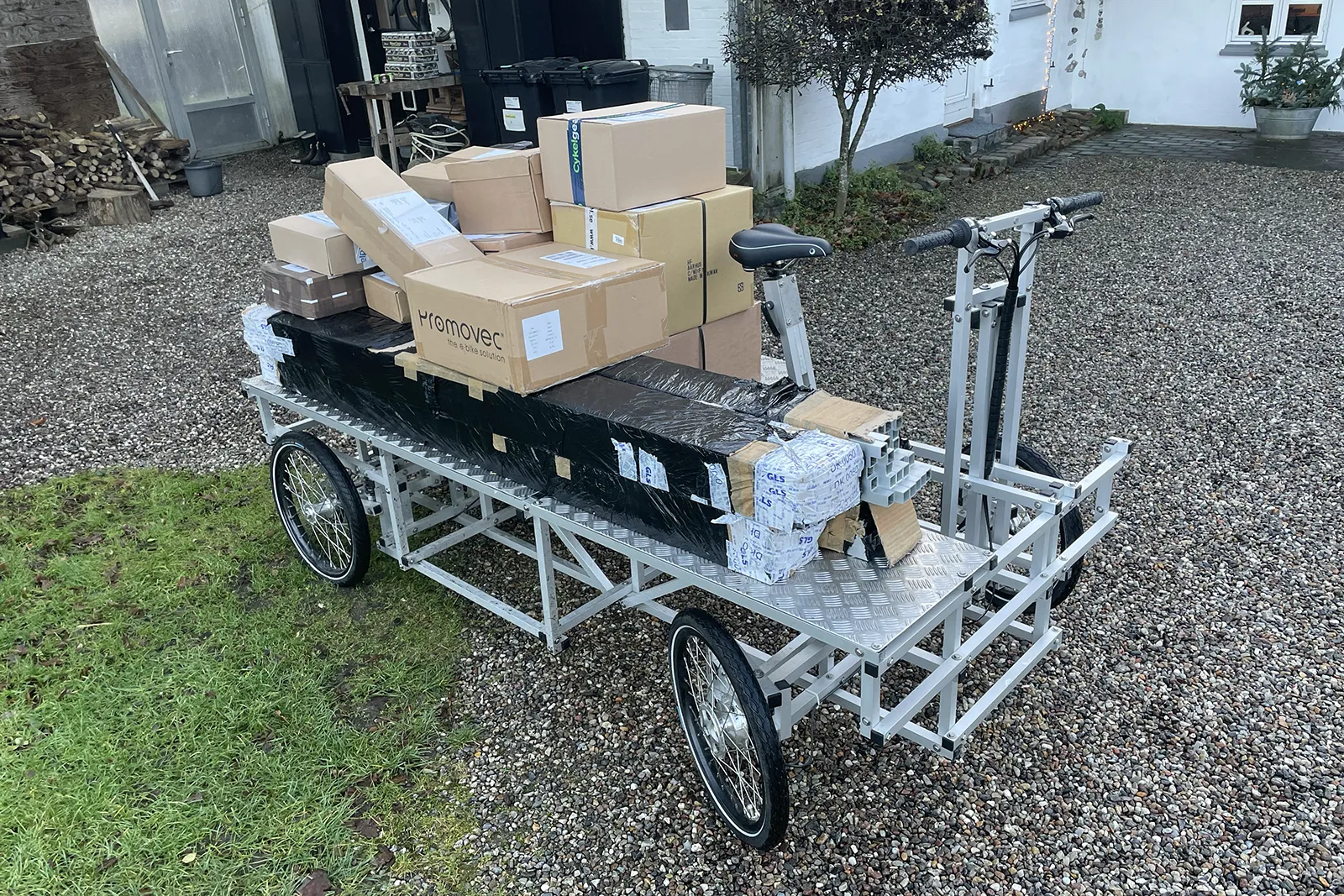

The XYZ CARGO TRUCK — the bicycle truck. Designed for transporting heavy loads and large objects.

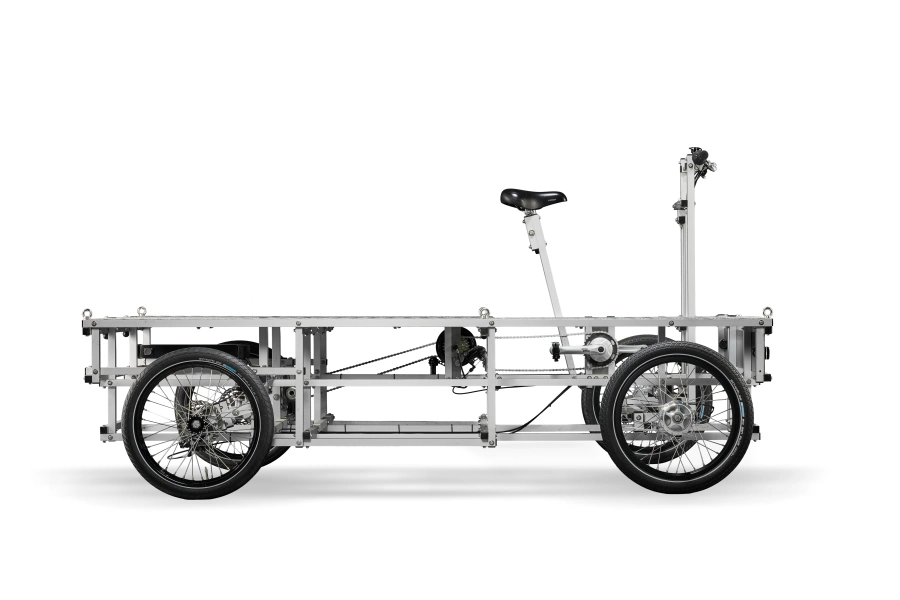

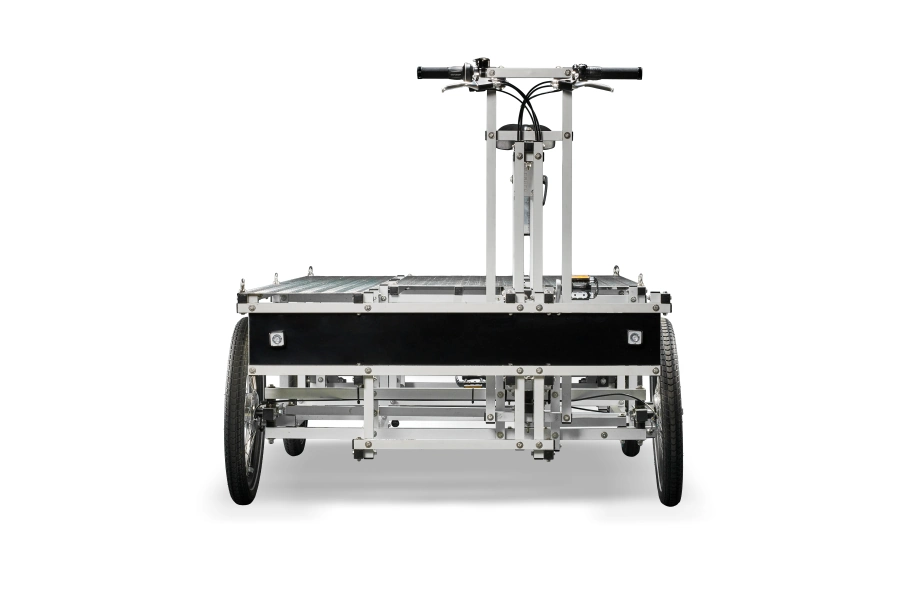

This four-wheeled vehicle features an asymmetrical riding position, keeping the vehicle compact while maximising cargo capacity. With a total permissible weight of up to 360 kg and space for up to two Euro pallets, the XYZ CARGO TRUCK offers impressive transport performance. It features Ackermann steering, a small turning radius, full suspension as standard, and a powerful electric motor.

A variety of superstructures and detachable modules are available for both commercial and private use — for example, kitchen modules, logistics containers, flatbeds, passenger transport units, or camping extensions. On request, XYZ CARGO can develop a custom-built structure tailored to your specific requirements.

• Dimensions: 235 × 120 × 115 cm (L × W × H) – other lengths on request
• Empty weight: 75 kg
• Payload capacity: up to 280 kg (including load, driver, and body)
• Loading volume: up to 3 m³ / up to 2 Euro pallets (depending on vehicle length)
• Loading area: 141 × 113.5 cm (larger dimensions on request) plus area next to the driver approx. 90 × 50 cm
• Frame: Anodised aluminium tube (XYZ grid frame construction, self-stiffening); stainless-steel screw connections and self-locking nuts (no re-tightening required); all-plastic fittings (pipe fillings at all steering and axle suspension points)
• Motor: E-bike motor with Li-ion battery and disc brake; high-torque 250 W / 36 V e-motor, 375–480 Wh Li-ion battery (long-life technology, 2-year warranty), twist grip for speed control; complies with EU directives for e-bike systems, including disc brakes
• Gears & transmission: 8-speed Shimano shifting; transmission ratio optimised for transporting heavy loads rather than high top speeds (max. 25 km/h)
• Braking system:
  • Front: Heavy-duty 90 mm Sturmey Archer drum brakes including synchronous brake system
  • Rear: Disc brake
• Suspension: Rear suspension (various spring strengths available depending on application)
• Wheels: 2 × 20″ front, 2 × 20″ rear; robust steel box rims, 2.34 mm heavy-duty stainless-steel spokes, reinforced axles (16 mm rear, 12 mm front)
• Tyres: Special tyres for heavy-duty applications
• Accessories: Mudguards and lighting
• Optional structures and modules:

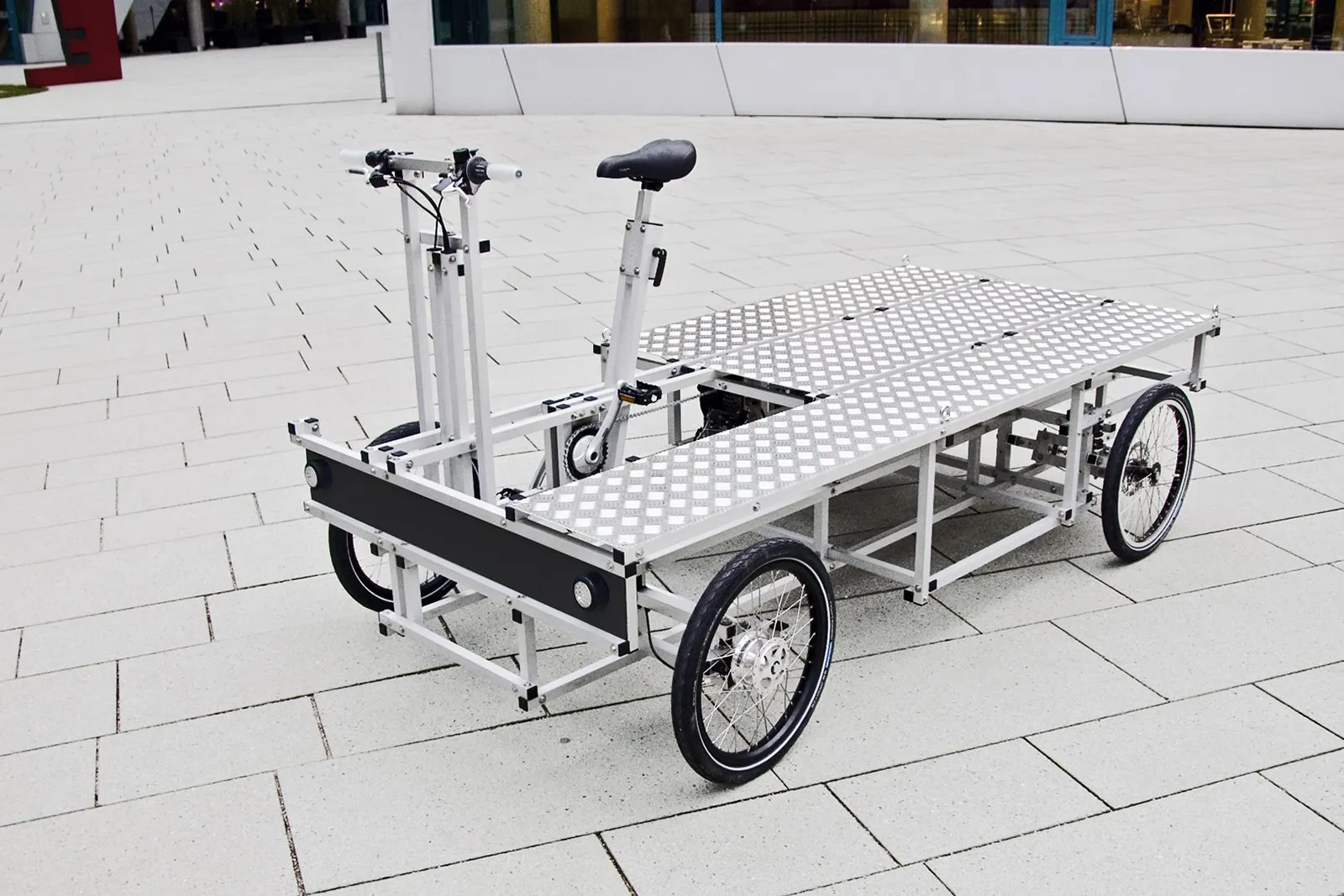

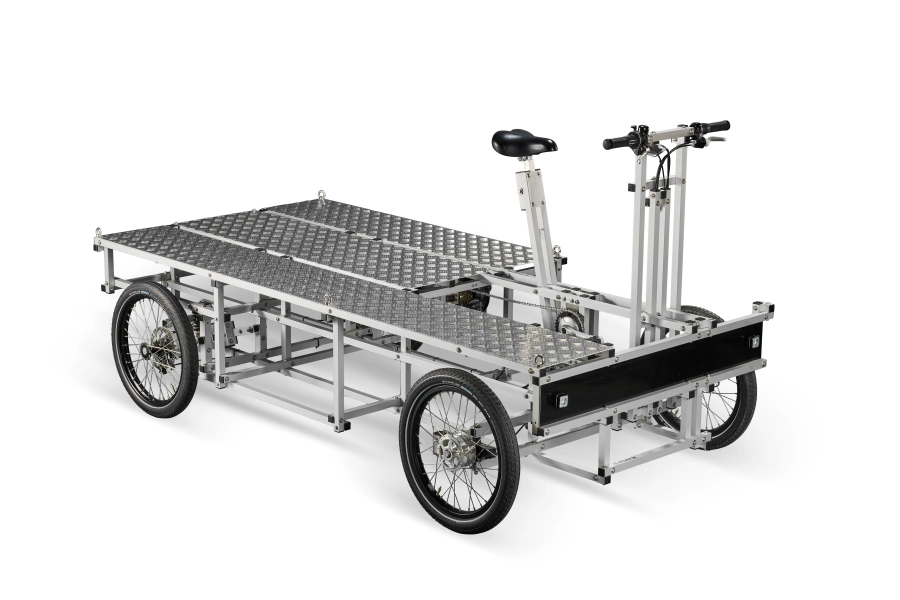

  • Loading area made of aluminium checker plate with eyelets (490 EUR)

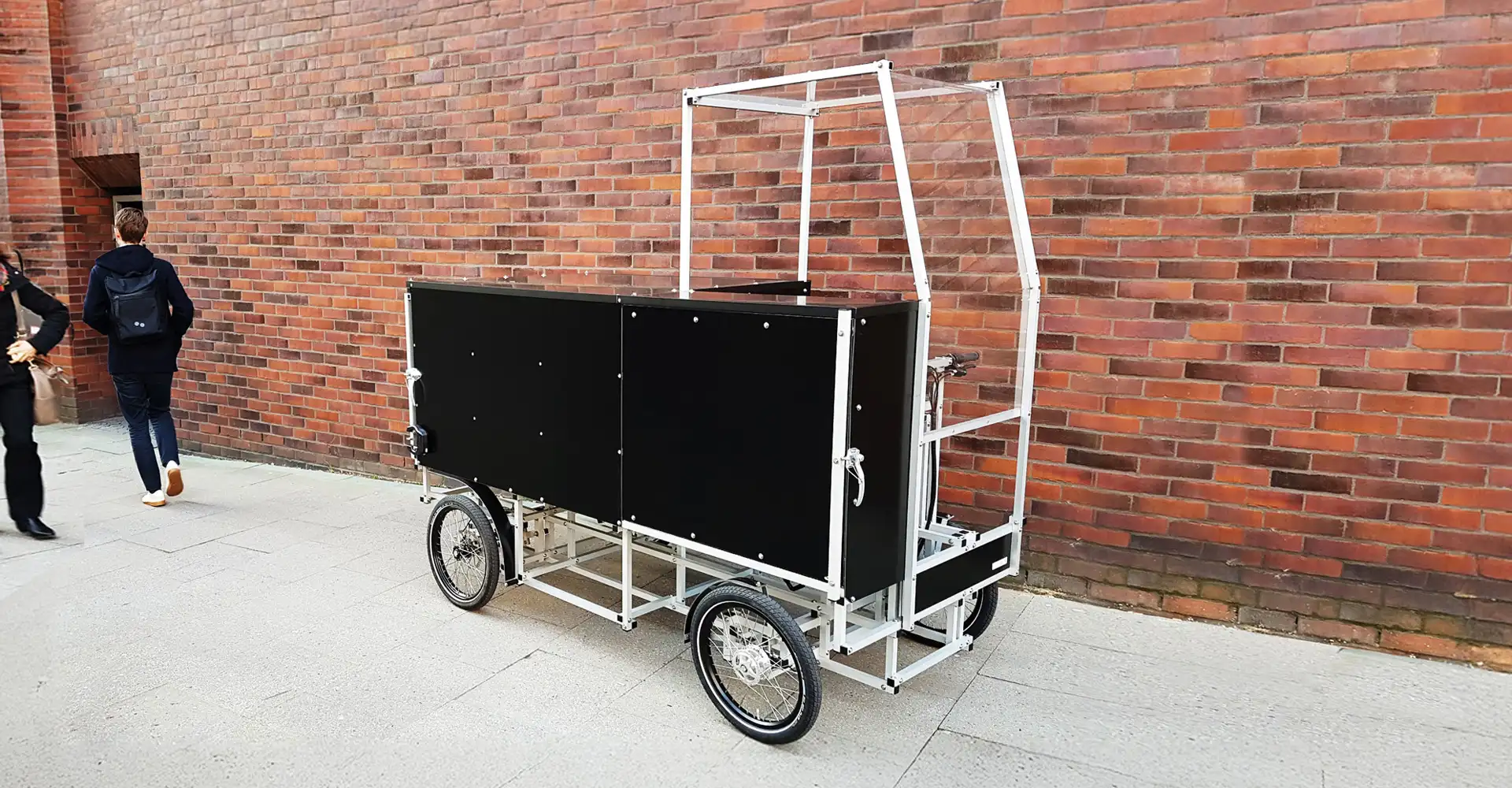

  • Logistics container, fixed or removable, with doors (from 1900 EUR)
  • Platform body with foldable tail lifts (from 1150 EUR)

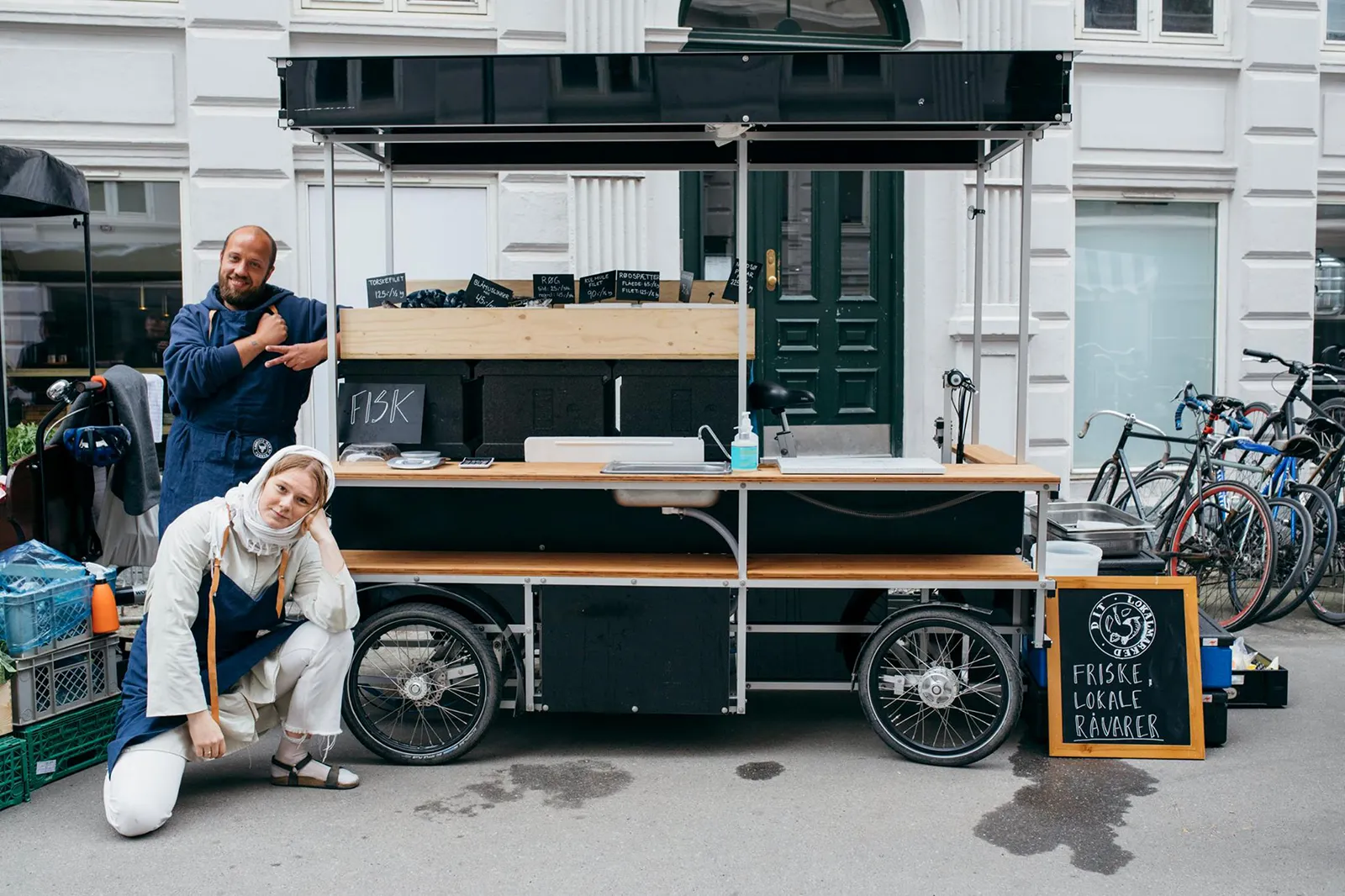

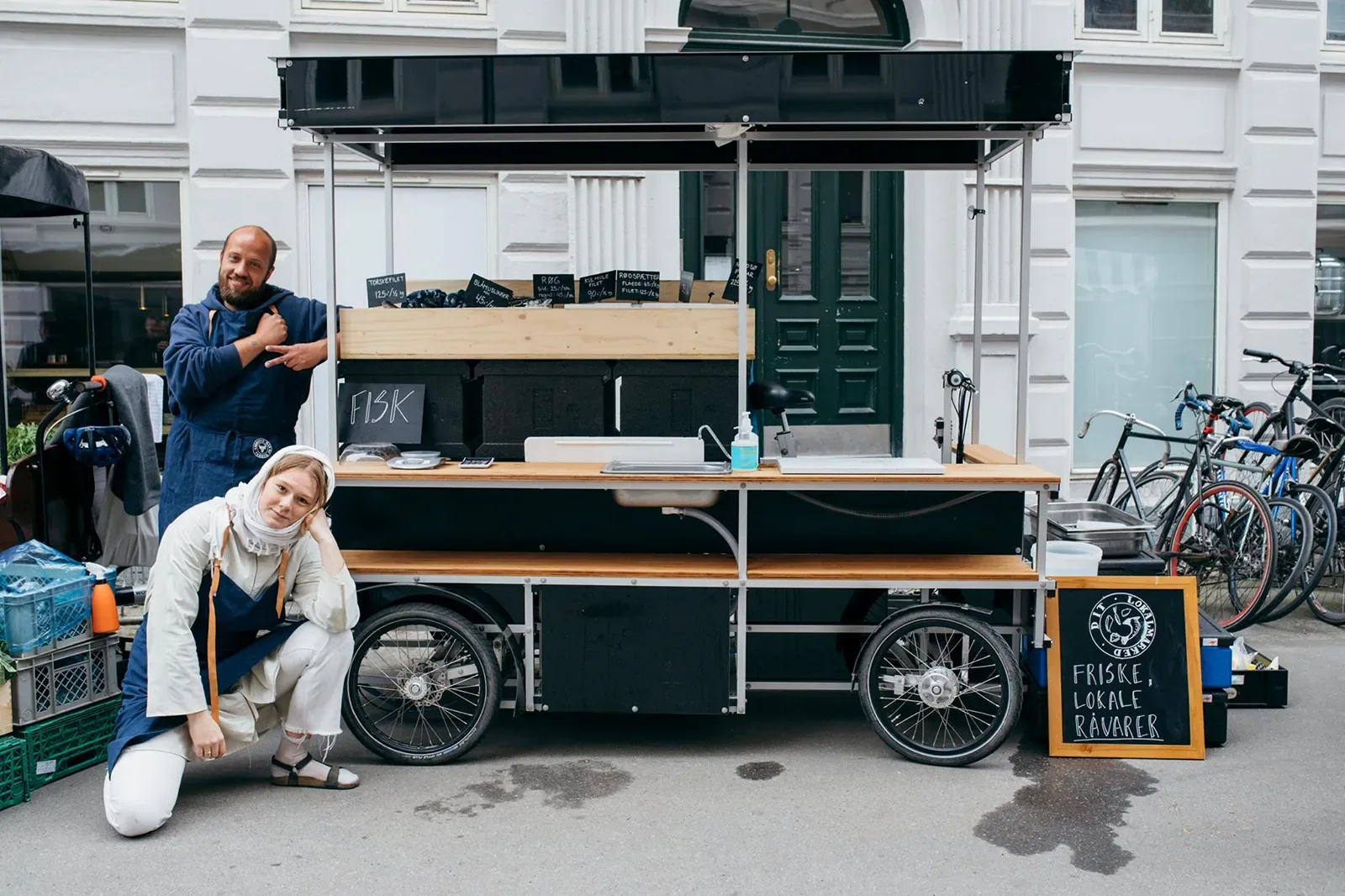

  • Kitchen module with work surface, storage compartments, and roof (from 2900 EUR)

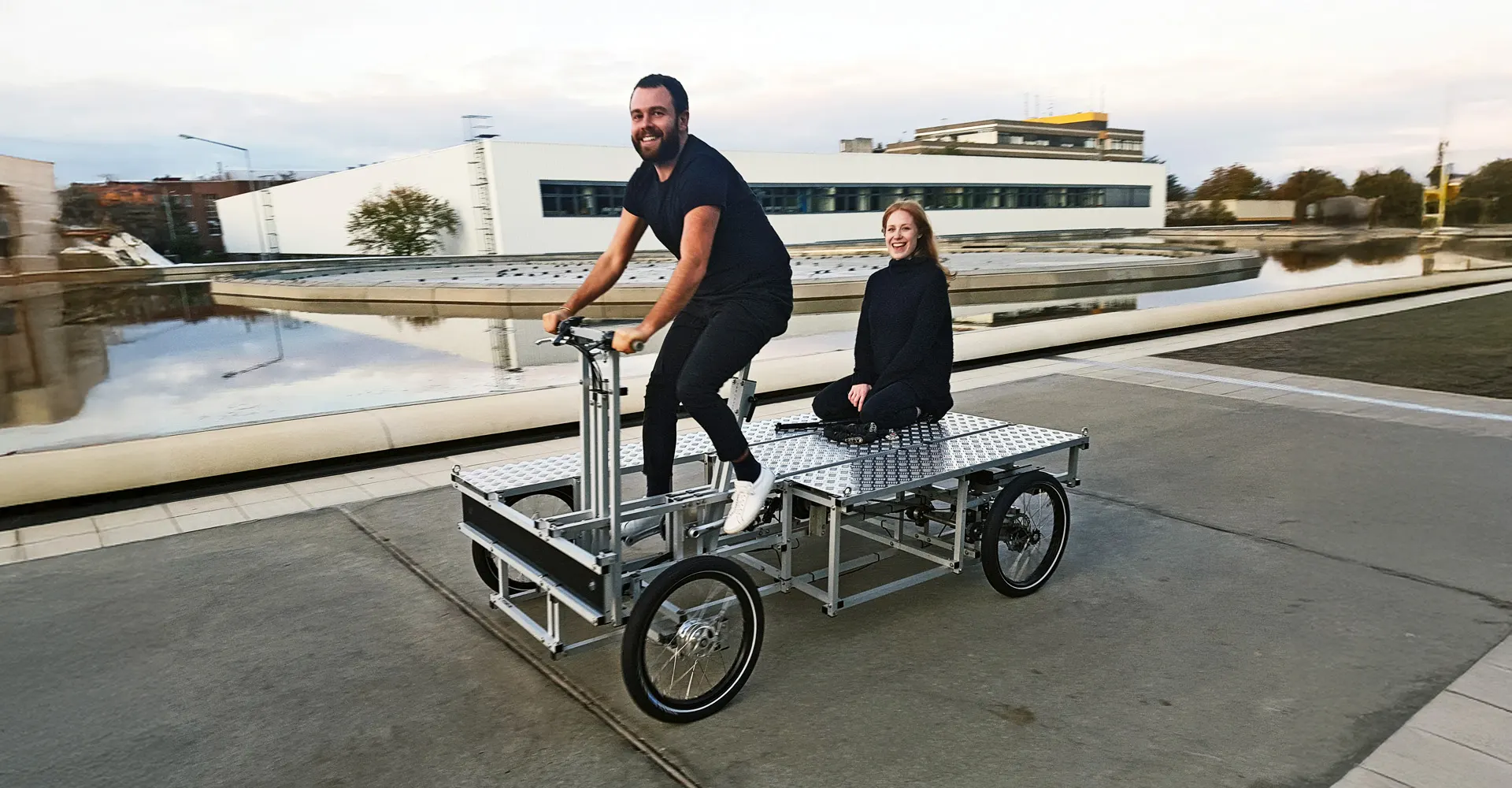

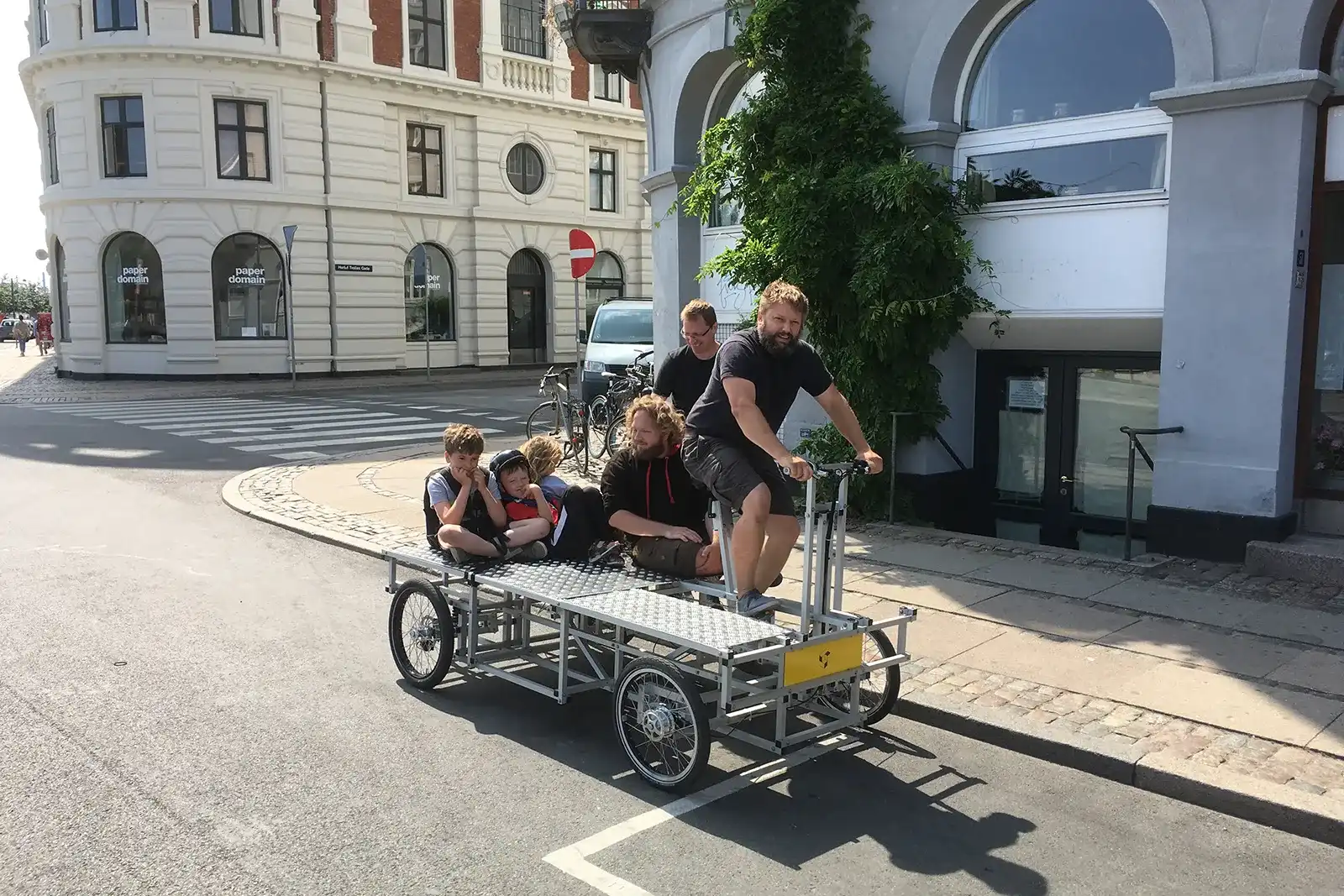

  • Passenger transport (on request)
  • Camping attachments (on request)
• If required, XYZ CARGO can design and manufacture a superstructure tailored to your needs.
• Price (XYZ CARGO TRUCK, including electric motor, fully assembled and ready to drive):
  • 8250 EUR / 61 545 DKK (incl. VAT)

see full pricelist
